OptiMate – State of Charge Monitor O125


Product Description

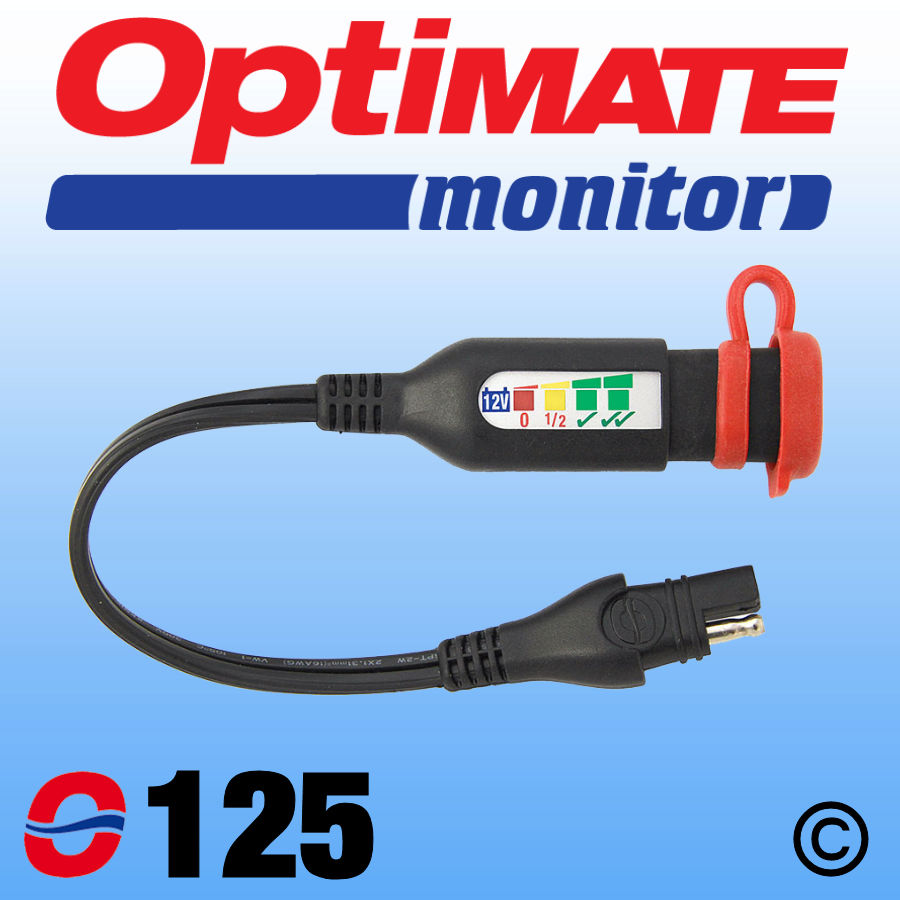

OptiMate – State of Charge Monitor O125

Battery monitor with in-line SAE connectability

Monitor charge of any 12V lead-acid battery or confirm if vehicle charging system is working correctly. Connects to any SAE battery lead or adaptor.

  • 2 automatic modes – battery charge level monitor (single LED blink mode) & charging system test (arrow mode)
  • 4 LEDs cover ‘full to empty’ voltage range of all 12V batteries, including higher voltage AGM for power sport (4th √√ LED ≥ 12.7V)
  • Battery charge level: LED matching charge level blinks every 5 seconds (long term draw less than 0.2mA)
  • Fast blink mode for first 15 seconds after connection to battery, ideal for quick check of multiple batteries (e.g. vehicles on showroom floor)
  • Vehicle charge system: LED arrow mode activates when charge voltage reaches minimum 13.5V (√ green LED) or ideal range of 14V+ (√√ green LED)
  • Innovative heavy-duty connection system
  • Compatible with standard SAE connectors
  • Reliable weatherproof connection
  • Length: 15cm
  • Warranty: 3 years
